TMA-60

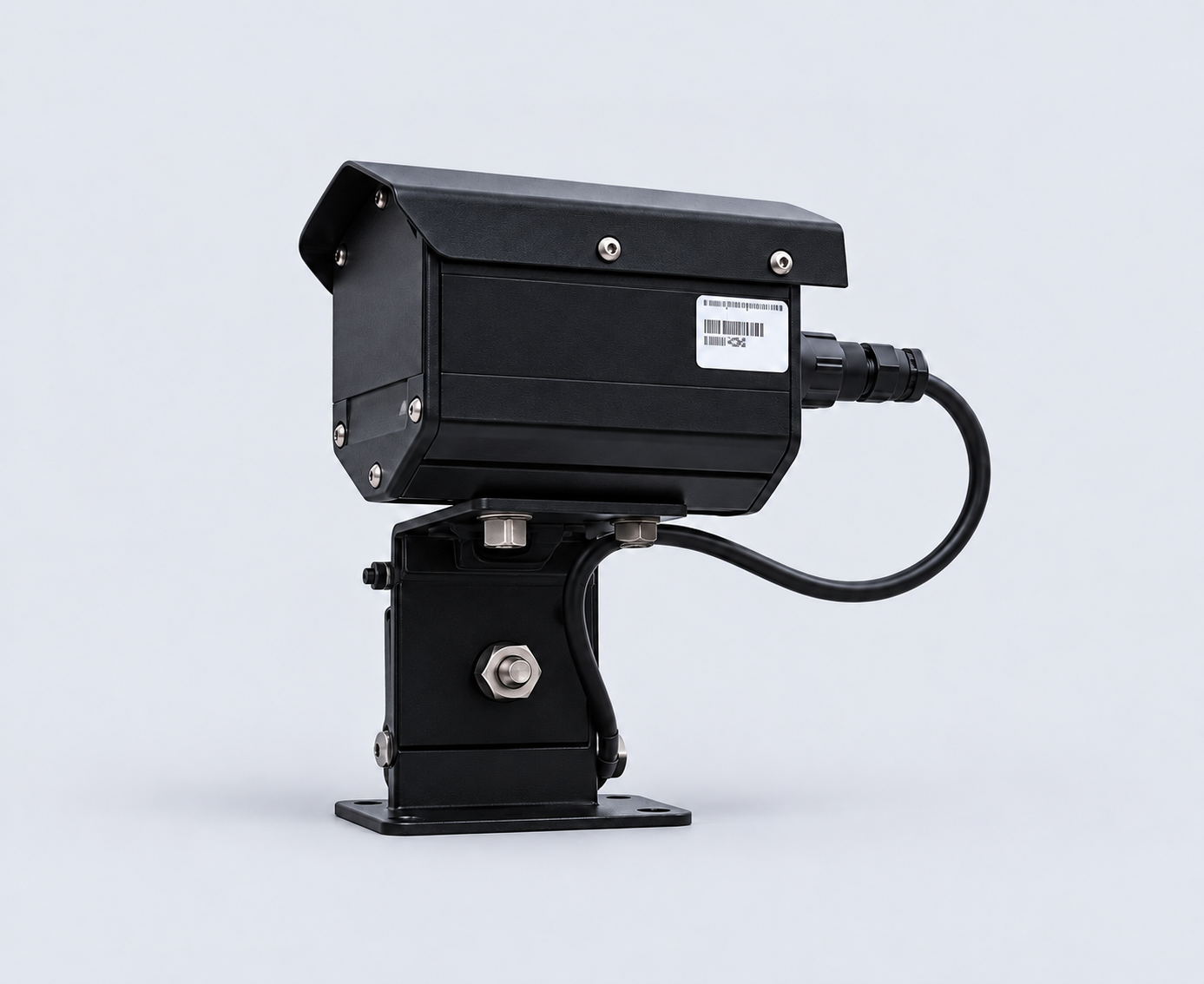

The TMA-60 detects moving vehicles on approach at ranges adjustable from 20 to 150 m. It calls or extends the green phase at traffic lights, wakes a lighting system from standby, or activates a warning sign as a vehicle passes. Two rotary encoders set range and speed threshold without opening the housing, so configuration happens at the pole in minutes.
One radar. Four detection ranges.
The TMA-60 is a multifunction radar with adjustable detection range, detecting moving vehicles up to 150 m.
It calls or extends the colour phase of traffic lights, wakes a lighting system from standby, or activates a light signal when a vehicle passes. Compact and lightweight, it installs quickly without civil engineering works or traffic stops.
Talk to our teamSet the range. Set the threshold.
The TMA-60 closes or opens a dry contact when it detects a vehicle travelling above the selected speed threshold and within the chosen detection range. That contact drives an automatic control system for traffic lights, light poles, or fixed and variable message panels.
Adjustable to the approach
Range adjustable to 20, 40, 80 or 150 m, uni- or bi-directional, with two speed thresholds and four distance thresholds.
Set without opening the housing
Two rotary encoders set range and threshold from outside the enclosure. No software, no disassembly in the field.
Dry contact to your controller
One relay contact plus two visible LEDs on the front face, with a one-second relay hold time.
Compact and lightweight.
The TMA-60 is available in L, M, and H power variants. Range figures assume a standard car with the radar installed at a height of 4.5 m, an angle of 5°, and sensitivity at three quarters.
Download the data sheet68 × 99 × 205 mm (M)
68 × 99 × 205 mm (H)
0.320 kg (L); 0.510 kg (M); 0.543 kg (H)
M model: 15–54 V AC / 21–75 V DC
H model: 100–240 V AC, 50–60 Hz
< 2 W at 220 V AC
Resistive load: 30 V AC 0.3 A / 60 V DC 0.3 A
Option: 250 V AC / 30 V DC, 0.3 A
