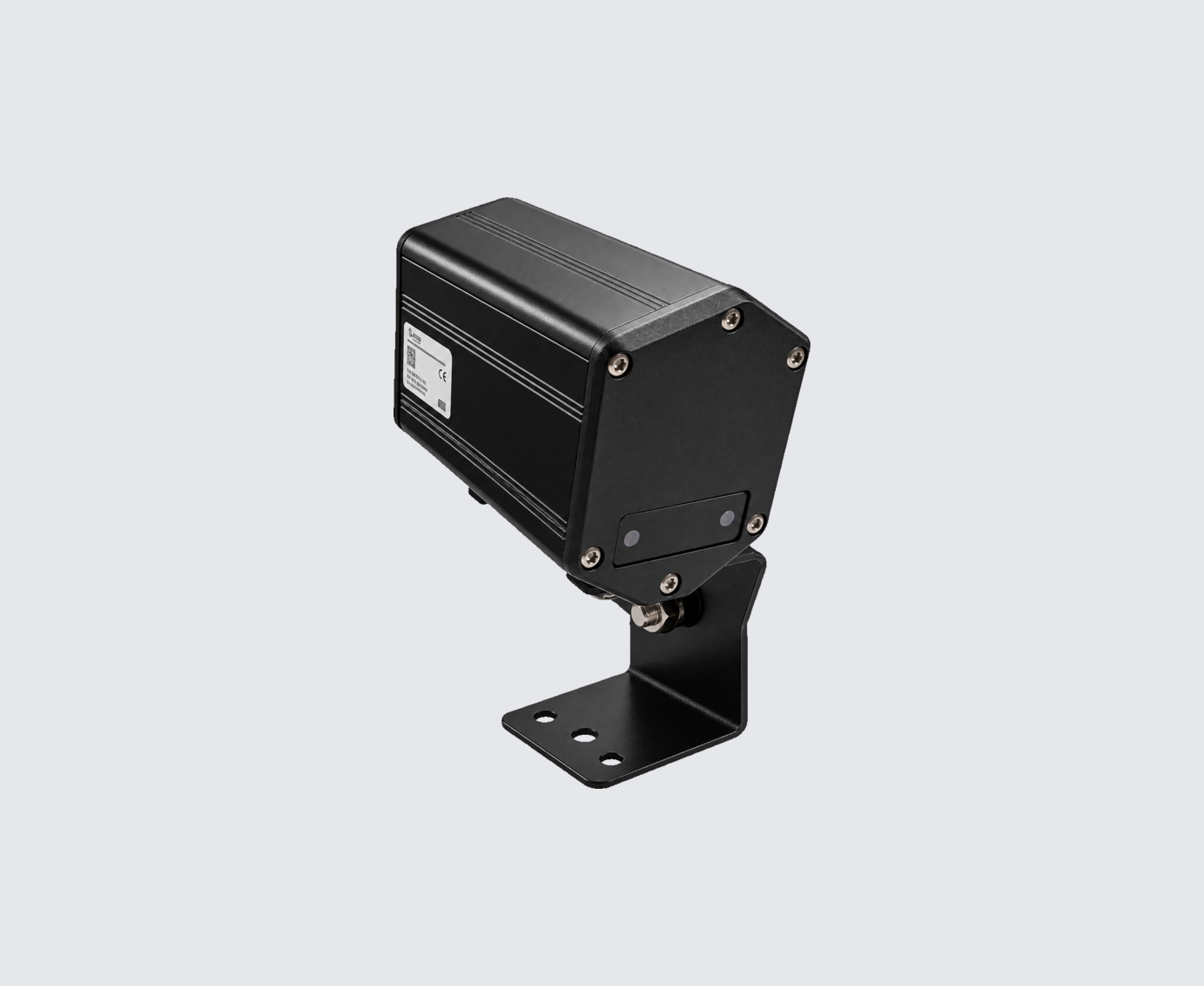

TMA-011
The TMA-011 detects pedestrians and cyclists at ranges adjustable from 8 to 30 m. It extends the pedestrian green to match the flow on the crossing, calls a green phase for cyclists without them stopping to press a button, and wakes standby lighting as people arrive. Detecting movement from 0.5 km/h, it catches walking pace reliably where vehicle radar does not.
Built for people, not just vehicles.
The TMA-011 detects pedestrians and cyclists, with an adjustable detection distance reaching 30 m.
It adapts the duration of the pedestrian green to the flow on the crossing, wakes a standby light, or calls a green phase for cyclists without them having to step down to press the call button. Compact and lightweight, it installs quickly without civil engineering works or traffic stops.
Talk to our teamDetects walking pace.
The TMA-011 closes or opens a dry contact when it detects an object moving at a speed greater than 0.5 km/h. That contact communicates with a traffic light controller, light poles, LED panels, and similar equipment.
Pedestrians and cyclists
Detects movement from 0.5 km/h, with range adjustable to 8, 12, 16 or 30 m, uni- or bi-directional.
Set without opening the housing
Range and direction are set from outside the enclosure. The unit self-monitors in service, so faults surface without a site visit.
Changeover relay contact
A changeover relay contact plus a front-panel LED, with a response time under 500 ms and a 750 ms relay holding time.
Compact and lightweight.
The TMA-011 is available in L, M, and H power versions. Range figures assume the radar installed at a height of 4.5 m at an angle of 5°.
Download the data sheetFrom 0.35 kg to 0.48 kg, according to version
M version: 15–54 V AC / 21–75 V DC
H version: 110–220 V AC
Changeover relay contact
