IcomSpeed

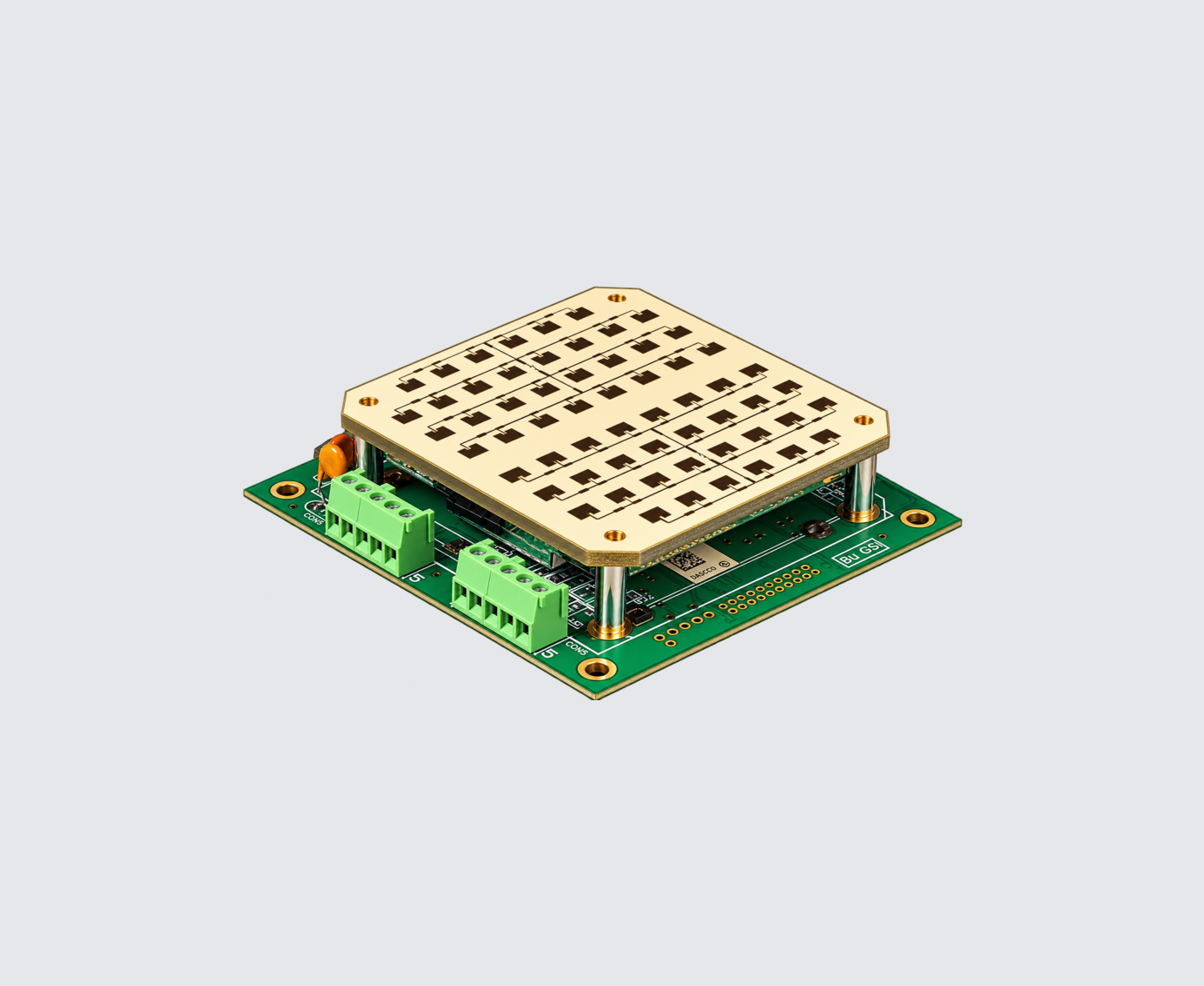

The IcomSpeed is a board-level Doppler speed sensor for integration into your own product. An 80 mm square module drawing as little as 8 mA, it reads vehicles to 120 m and trucks to 250 m, reporting speed over RS-232 with two configurable open drains for threshold triggering. Supplied without an enclosure, for building into signs, luminaires and variable message systems.
A speed sensor for your product.
Compact and very energy-efficient, the IcomSpeed Doppler speed sensor integrates easily into your own application.
It measures speed and transmits it on RS-232 output. It is also equipped with an open collector whose trigger speed threshold can be set. At 80 × 80 × 26 mm and 100 g, it is built to go inside your enclosure, not alongside it.
Talk to our teamSmall board. Long reach.
An 80 mm square board drawing as little as 8 mA, reading personal vehicles to 120 m and trucks to 250 m. RS-232 carries the speed value; two configurable open drains handle threshold triggering without any processing on your side.
80 × 80 × 26 mm, 100 g
Small enough to design into a sign, a luminaire or a roadside enclosure, with a 12° × 24° antenna pattern.
From 8 mA at 12 V DC
Runs on 5.5 to 18 V DC and draws 8 to 50 mA depending on configuration, so it suits battery and solar installations.
RS-232 and two open drains
Speed over serial at 9600 to 57600 baud, via text menu or machine-to-machine protocol, plus two fuse-protected open drains rated 90 mA at 45 V.
Supplied as a module.
The IcomSpeed ships as a board without an enclosure. Antenna aiming, housing and environmental protection are the integrator's responsibility.
Download the data sheetPersonal vehicles: 120 m
Trucks: 250 m
Two open drains, max. 90 mA / 45 V, fuse protected
