I-SAFE-2

The I-SAFE 2 shows drivers their speed alongside text or pictogram messages, combining a tricolour numbers matrix with an 832-LED display panel. Two lines of text appear simultaneously with the speed reading, cycling through up to three messages, with an anti-record function that stops the sign rewarding drivers who speed up for a high reading. Integrated radar, a removable battery and solar or street-lighting power make it mobile enough to move between sites.

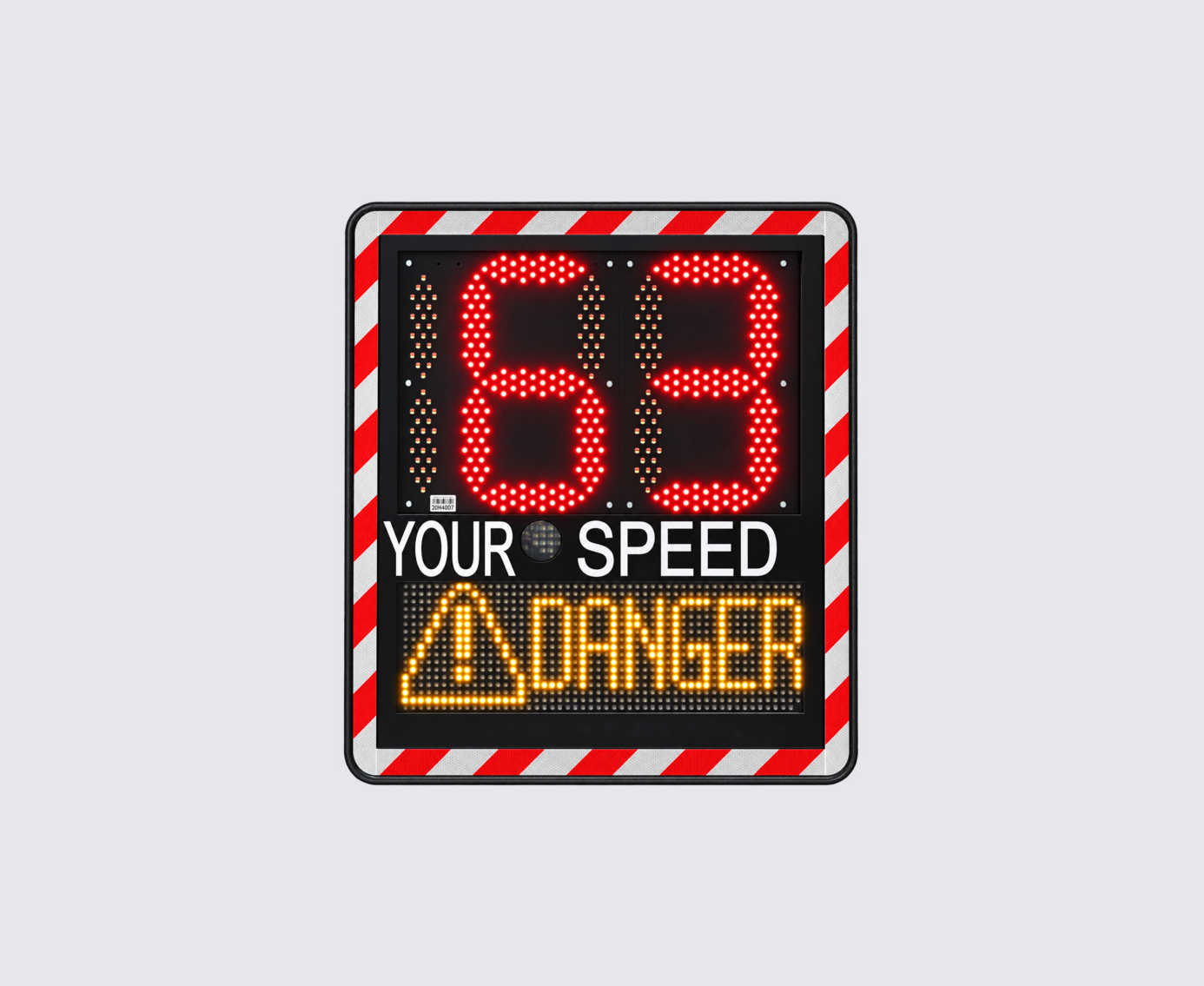

I-SAFE 2 radar speed display sign with text matrix
Speed warnings / I-SAFE 2

Speed and message, side by side.

The I-SAFE 2 displays the driver's speed together with text or picture messages, combining a numbers matrix with a full LED matrix.

A three-colour text matrix is available as an option. With integrated radar and a removable battery, it is mobile and easy to operate, and can be equipped with a solar power supply kit or connected to public lighting.

Talk to our team
Operation and benefits

Two matrices. One message.

Tricolour numbers turn green, orange or red according to the speed measured, while the 832-LED text matrix runs two lines of text or pictograms simultaneously with the speed. Three messages display in succession, with pre-programmed speed regimes and an anti-record function that stops the sign rewarding drivers who try for a high reading.

01 / Display

Speed and text at once

A 345 × 520 mm numbers matrix alongside a 160 × 520 mm text matrix of 832 LEDs, showing two lines of text or pictograms with the speed.

02 / Power

Three supply options

Rechargeable 12 V / 24 Ah battery, 220 V from grid or street lighting, or a solar kit. The complete basic kit includes fixing material.

03 / Data

A speed study from the sign

540,000 measurements in memory with a calendar function, managed through the included software. Bluetooth, 3G/4G modem and an online analytics platform are optional.

832 LEDs
Full text matrix for two lines of text or pictograms
Over 200 m
Detection distance from the installation point
11.4 kg
Without battery, mobile and easy to reposition
540,000
Measurements held in memory
Technical features

Mobile by design.

The I-SAFE 2 mounts on hooks on the back of the unit with mast support, and runs from battery, grid, street lighting or solar. Settings are customised via USB key, with Bluetooth available as an option.

Download the data sheet
Displayable speeds
From 5 to 199 km/h
Detection speeds
From 5 to 250 km/h
Detection distance
Over 200 m
Numbers size
345 × 520 mm (H × L)
Text matrix size
160 × 520 mm (H × L), 832 LEDs
Unit size
775 × 665 × 140 mm (H × L × P)
Weight
11.4 kg, without battery
Protection level
IP65
Mounting support
Hooks on the back of the unit, plus mast support
Operating temperature
−40 °C to +65 °C
Power supply
12 V DC by rechargeable 12 V / 24 Ah battery
220 V from grid or street lighting
Solar kit
Consumption
0.2 VA
Battery life
Depends on power supply
Frequency
K-band: 24.125 GHz
Transmitting power
< 5 mW
Communication interface
USB, with Bluetooth or GPRS as options
Memory size
540,000 measurements
Software
Operating system: Windows 10 or later, minimum 512 MB RAM
Disk space: 200 MB
